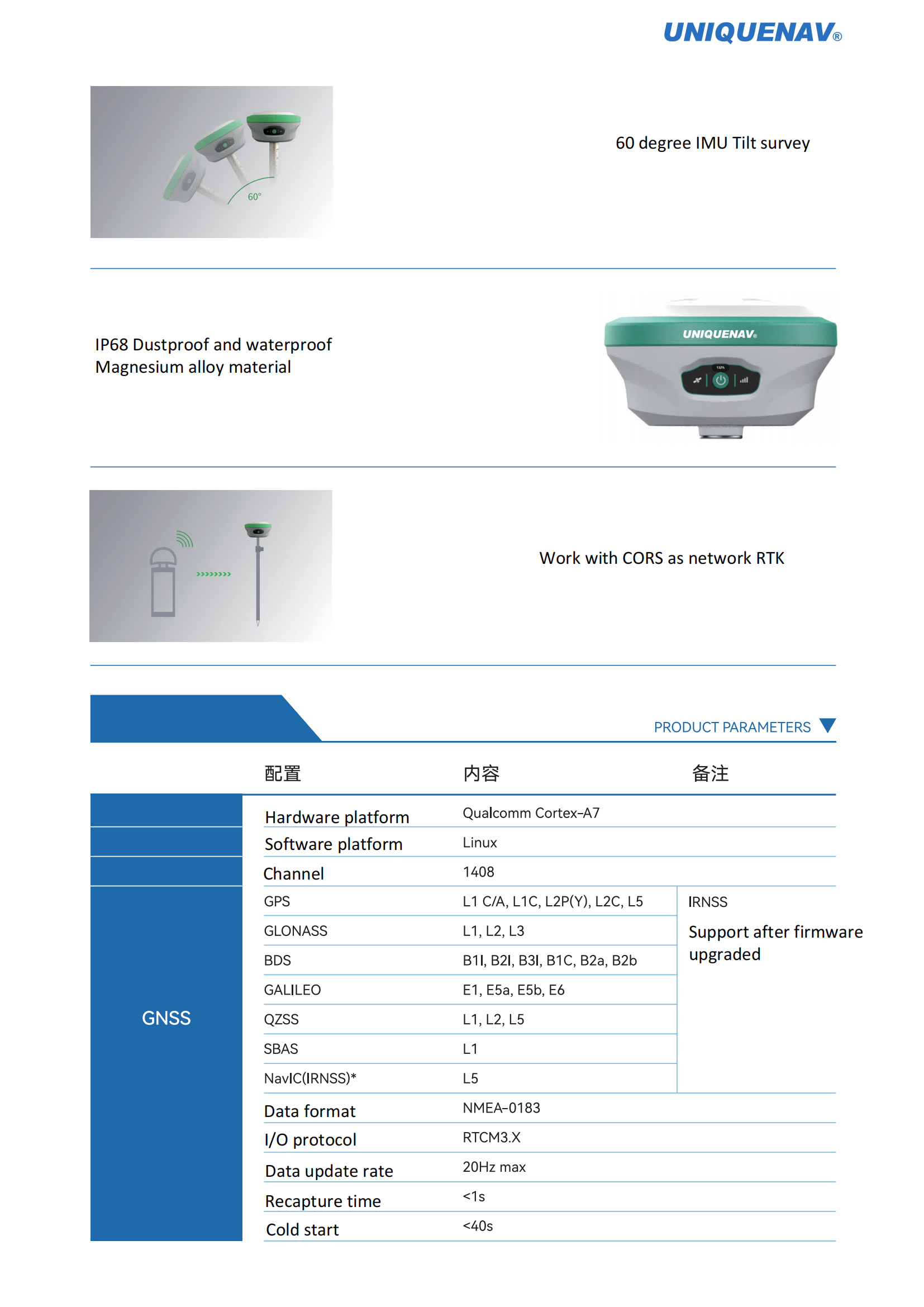

UNIQUENAV U10

Hardware platform

Qualcomm Cortex-A7

Software platform

Linux

Channel

1408

GNSS

GPS

L1 C/A, L1C, L2P/(Y), L2C, L5

IRNSS

Support after

firmware upgraded

GLONASS

L1, L2,L3

BDS

B1I, B2I, B3I, B1C, B2a, B2b

GALILEO

E1, E5a, E5b, E6

QZSS

L1, L2, L5

SBAS

L1

NavIC(IRNSS)

L5

Date format

NMEA-0183

I/O protocol

RTCM3.X

Date update rate

20Hz max

Recapture time

<1s

Cold start

<40s

Accuracy

Single (RMS)

Horizonal: 1.5m Vertical: 2.5m

DGPS(RMS)

Horizonal: 0.4m Vertical: 0.8m

RTK(RMS)

Horizonal: ±（8mm+1ppm）

Vertical: ±（15mm+1ppm）

Time(RMS)

20ns

Static(RMS)

Horizonal: ±（2.5mm+1ppm）

Vertical: ±（5mm+1ppm）

Speed(RMS)

0.03m/s

Tilt accuracy

<2cm

System platform

WIFI

802.11b/g/n

Network module

LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28

LTE TDD: B38/39/40/41

WCDMA: B1/2/4/5/6/8/19

GSM：B2/3/5/8

Internal Rodio

Frequency: 410~470MHz

(Rx/Tx)

Power: 5W(37±1dBm） 1W(30±1dBm)

Protocol: TRIMTALK, TRIMMK3, SOUTH, TRANSEOT

Baud rate: 9600, 19200

Memory

32GB

Camera

Hd ultra wide angle camera, support AR

Indicator

Power indicator

satellite indicator

Date link indicator

Battery

Battery

7.4V, 6500mAh

At least 20 hours for Date collector network mode

26 hours for static

Charge

UBS PD 15V/2A

5V/3A

Environment

Working temperature

-20℃~+60℃

Storage temperature

-20℃~+70℃

Anti-knock

1.5m

Dustproof and waterproof

IP68

Physical

Magnesium alloy+ABS

Size

φ140mm*85mm

Weight

≤890g

Accessory

U10 Receiver

1

Power adaptor

1

USB C To C cable

1

Radio antenan

1
