High accuracy GNSS Receiver rtk Cors C19

Introduction

Introduction

1.Product brief description

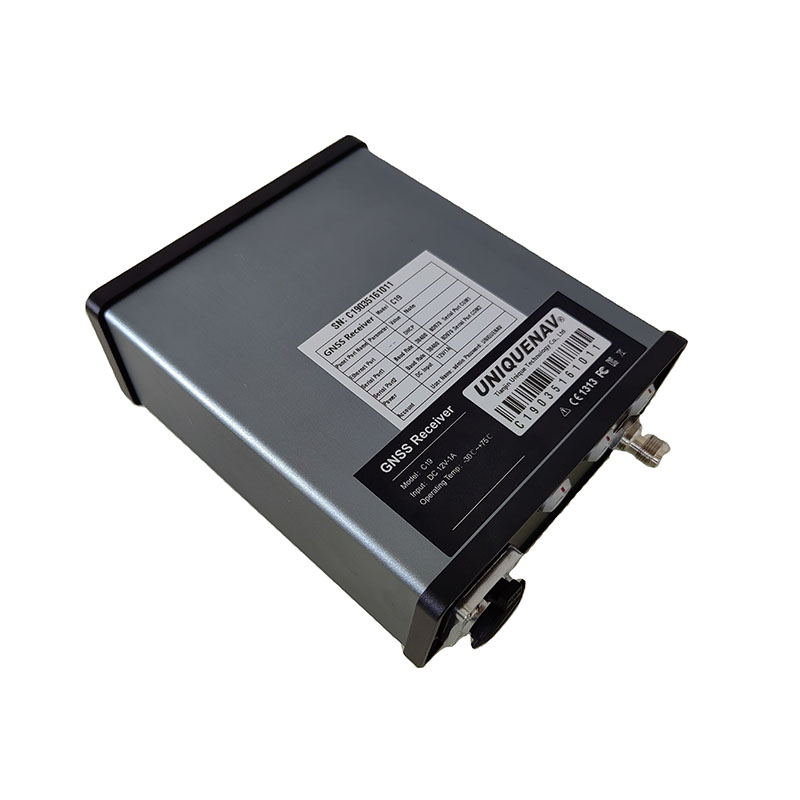

High accuracy GNSS Receiver rtk Cors C19

2.Product details description

The GNSS Receiver C19 uses a Trimble BD970 OEM board. It can be used in a variety of applications and is compatible with various platforms that can improve Single Base Station applications and any kind of VRS setup and suitable for deformation monitoring. An advanced type of self-locking connection is employed; the outer casing is made of aluminum alloy with a system that cools the machine. This self-cooling mechanism is coupled with anti-shock technology and more.

3.Product parameter list

Item	Parameter
GNSS Module	Trimble BD970
Web Server	GNSS board embedded
Power indicator	One LED light
Ntrip Caster	GNSS board embedded

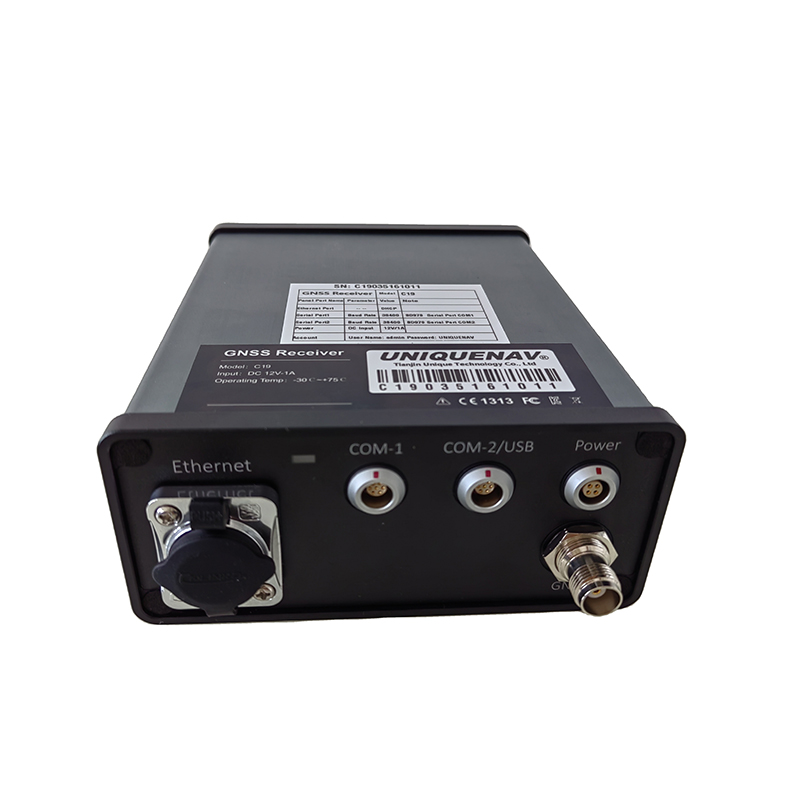

Ethernet	RJ45 water-proof Ethernet port
Serial Port	RS232 standard
GNSS Antenna interface	TNC type at the same side with the other connector
Shell material	Aluminum alloy
Dimension	167mm×128mm×59mm
USB port	Optional, one fischer USB port for download static data
1PPS&Event(Optional)	Optional, two SMA connectors for the functions
Moving Base and Heading	Optional
Battery	None
Channels	336
Signal Tracking	GPS: L1 C/A, L2E,L2C,L5
	BeiDou: B1,B2,B313
	GLONASS: L1 C/A,L2 C/A,L3 CDMA14
	Galileo2: E1,E5A,E5B,E5AltBOC,E614
	IRNSS: L5
	QZSS: L1 C/A,L1 SAIF,L2C,L5,LEX
	SBAS: L1 C/A,L5
	MSS L-Band: OmniSTAR, Trimble RTX
Maximum rate	＜50Hz
Autonomous	1m horizontal, 1.5m vertical
SBAS	0.5m horizontal, 0.85m vertical
DGPS	0.25m horizontal, 0.5m vertical
RTK	0.008m horizontal, 0.015m vertical
RTK initialization reliability	＞99.9%
DC Input	12V, 1A
Operating temperature	-30℃~+75℃
Storage temperature	-40℃~+85℃
Operating humidity	5%~95%(No condensing)
Standard Accessory	Power cable1, Adaptor1, Fischer to Serial Cable1, RJ45 cable1, TNC to TNC cable*5m
Optional Accessory	Choke Ring Antenna, Fischer to USB cable, Engineering plastics case
